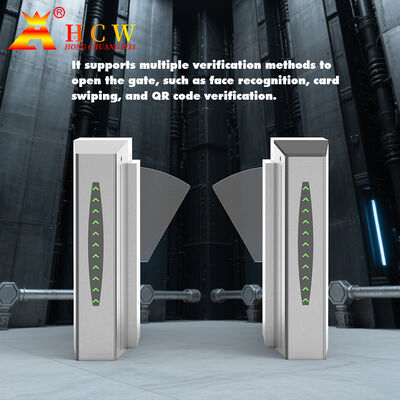

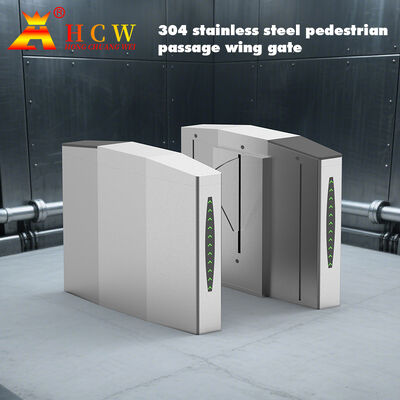

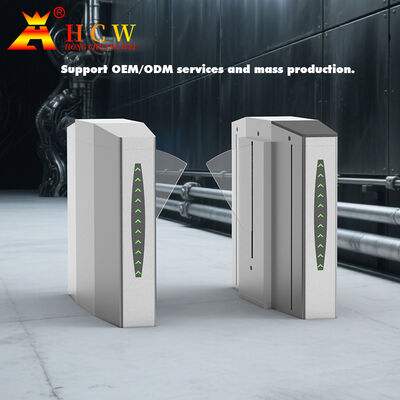

HCW Wing Gate Turnstile with 40W DC Brushless Motor RS485/RS232 Interface and 4-Pair Infrared Beam for Secure Access Control
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | HCW |
| प्रमाणन | CE/ISO 9001 |
| मॉडल संख्या | CW507 |
| न्यूनतम आदेश मात्रा | 2 टुकड़े |
| मूल्य | विनिमय योग्य |
| पैकेजिंग विवरण | लकड़ी का केस |
| प्रसव के समय | 5-8 कार्य दिवस |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | प्रति दिन 100 टुकड़े |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| Brand name | HCW | उत्पाद मॉडल | CW507 |
|---|---|---|---|
| संलग्नक सामग्री | 304 स्टेनलेस स्टील | बाड़े का आकार | 1400*300*990 मिमी |
| गारंटी | 1 वर्ष | प्रमाणपत्र | आईएसओ 9001/सीई |
| परिचालन तापमान | -25 ℃ ~ 70 ℃ | मोटर | 40W डीसी ब्रशलेस |
| संचार इंटरफेस | Rs485/rs232 | अवरक्त किरण | 4 जोड़े |
| सामान्य सेवा जीवन | 5 मिलियन चक्र | पारित गति | 30 ~ 40 लोग/मिनट |
| प्रमुखता देना | 40W DC Brushless Motor Wing Gate Turnstile,RS485/RS232 Interface Flap Barrier Turnstile,4-Pair Infrared Beam Bidirectional Turnstile |
||
उत्पाद विवरण
HCW Office Building Security Wing Gate Turnstile with Biometric Access Control and RS232 Interface
The HCW CW507 is a premium bidirectional flap barrier turnstile designed for high-traffic security applications. Featuring a rugged 304 stainless steel enclosure (1.2-1.5mm thickness), it ensures long-term durability in demanding environments. Powered by an efficient 40W DC motor system, it delivers smooth, maintenance-free operation while processing 30-40 people per minute - ideal for corporate offices, transport hubs, and secured facilities.
Key Features
- 304 stainless steel construction for maximum durability
- 40W DC motor for smooth, maintenance-free operation
- Processes 30-40 people per minute for high-traffic areas
- Supports RS485/RS232 interfaces for system integration
- 4-pair infrared beams for anti-tailgating protection
- Operates in extreme temperatures (-25℃ to 70℃)
- Compact 1400*300*990mm footprint
- 5 million cycle lifespan with 1-year warranty
- ISO 9001/CE certified
Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW507 |
| Enclosure Material | 304 stainless steel |
| Enclosure Size | 1400*300*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor | 40W DC brushless |
| Communication Interface | RS485/RS232 |
| Infrared Beam | 4 pairs |
| Normal Service Life | 5 million cycles |
| Passage Speed | 30~40 people/minute |
| Thickness | 1.2~1.5mm |
Advantages
Enhanced Safety & Durability
304 stainless steel construction (1.2~1.5mm thickness) ensures high impact resistance and long-term reliability in high-traffic areas.
Smooth & Efficient Operation
40W DC brushless motor delivers fast, silent, and maintenance-free performance with a passage speed of 40 persons/min.
Secure & Intelligent Access Control
4 pairs of infrared beams for anti-tailgating detection, ensuring strict security compliance for offices, factories, and public facilities.
Weather & Dust Resistance
Dustproof and waterproof design capable of operating in extreme temperatures (-25°C to 70°C), ideal for both indoor and outdoor installations.
Certified & Cost-Effective
ISO 9001 and CE certified with 5-million-cycle lifespan and 1-year warranty, providing a high-quality yet budget-friendly solution.
Applications
- Office Buildings & Corporate Facilities: Ensures secure and efficient access control for employees and visitors with sleek stainless-steel design.
- Public Transport & High-Traffic Areas: Manages crowd flow in metro stations, airports, and stadiums with 40 persons/min processing capability.
- Factories & Restricted Zones: Provides strict access control for industrial sites with infrared sensors to prevent tailgating.
